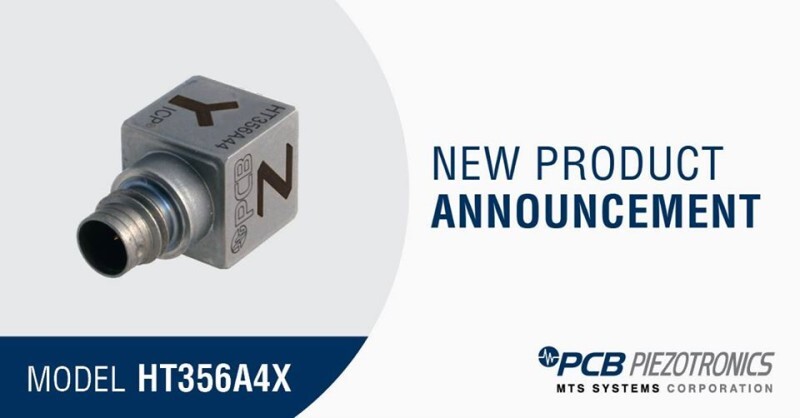

The HT356A43/44 is PCB’s smallest triaxial ICP® accelerometers with TEDS that is suitable up to 325 ◦F (163 ◦C)

PCB Piezotronics (United States) - Miniature Triaxial ICP® Accelerometers with TEDS.

Models 356A43, 356A44 and 356A45 are miniature and lightweight triaxial ICP® accelerometers that are TEDS IEEE 1451.4 enabled. The accelerometers are hermetically sealed and packaged in a 0.4 inch (10.16 mm) titanium cube that weighs 0.15 ounces (4.2 grams). These miniature triaxial accelerometers are available with three sensitivities, 10 mV/g, 50 mV/g or 100 mV/g.

Models J356A43, J356A44 and J356A45 are ground isolated to reduce electrical noise and ground loops.

Highlights:

• Small size and lightweight
• TEDS IEEE 1451.4 enabled
• Wide frequency bandwidth
• High resonant frequency
• Hermetically sealed titanium housing
• Ground isolated option

Applications:

• Modal and structural analysis
• NVH studies on automotive parts
• Space restricted installations
• Drop testing and package testing
• Small component qualification testing
• General purpose vibration testing
