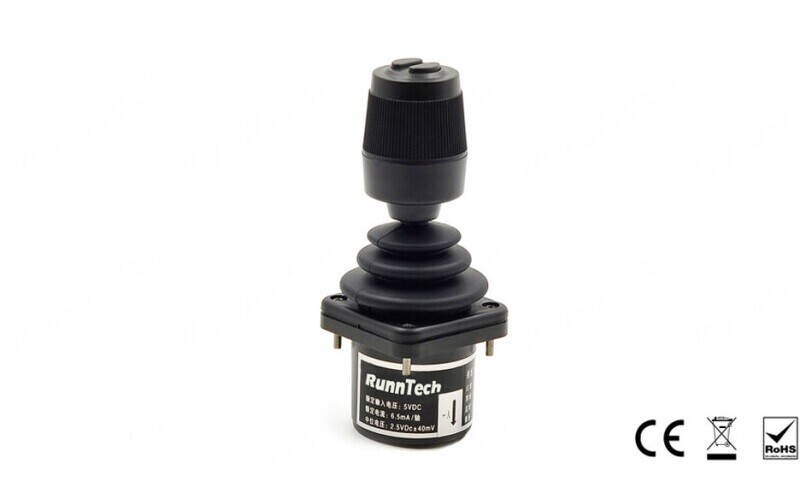

RunnTech 3 Axis Hall Effect Compact Fingertip Joystick for Boat and Vessel Control System Panel

RunnTech Electronics (Changzhou) Corp. (China) - RT600 series industrial Fingertip non-contact Hall effect joystick, ideal applications include: Medical imaging system, Measurement equipments, Automative control, Picture disposal devices, Move photography CCTV control system, Industrial robotics operations, Optical instruments, Surveillance monitoring, Studio related apparatuses, Audio video editing equipments, Navigation systems, Electromotive wheelchairs, Military equipment, Special vehicles, etc.

Part number: RT600-T-3-03-HV1-HD12-BT2-M11.

Info:

• RT600: RunnTech RT600 Hall effect joystick controller;
• T: self-centering to center position;
• 3: 3 axis control (z-axis with a twist knob);
• 03: X/Y axis omnidirectional movement, Z axis clockwise and counterclockwise;
• HV1: input: 5Vdc, output: 0…2.5…5Vdc (proportional);
• HD12-BT2: joystick knob top with 2 momentary pushbuttons;
• M11: mounting dimension: 36x36mm, centeral hole: 38mm;
