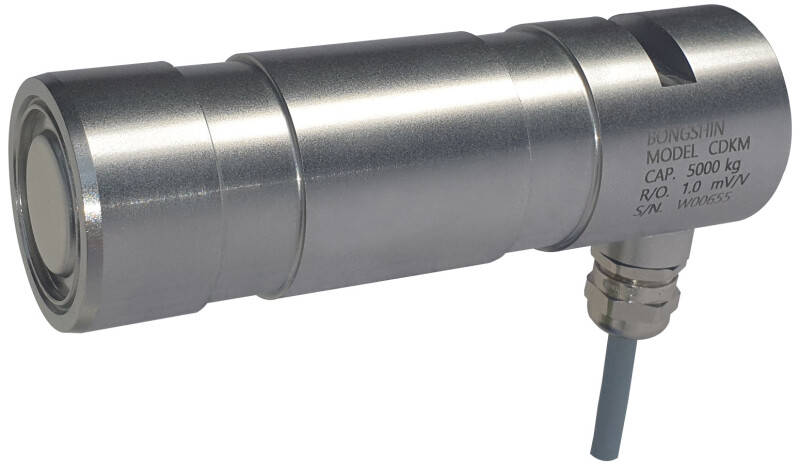

Pin Type Load Cell from Bongshin

14-03-2022

BONGSHIN LOADCELL (South Korea) - Press Release: Bongshin introduces CDKM series as a pin type load cell designed for use in harsh industrial environments.

The strain gauges are mounted inside the axial bore hole.

Custom designs are available in various range of capacity and dimension.

Specification:

Rated capacity (R.C.) : 5t ~ 60t
Rated output (R.O.) : 1.0mV/V (Nominal)
Non-linearity : ≤0.5% ~ 2.0% R.O.
Non-repeatability : ≤0.2% R.O.
Compensated temperature range : -10 ~ 70°C
Operating temperature range : -20 ~ 80°C
Excitation voltage : 3~12V (Recommended), 15V (Max.)
Cable : Ø5mm x 5m (4Core shielded)
Protection class : meets IP 68
Safe overload : 150% R.C.
Ultimate breaking load : ≥500% R.C.
Material : Stainless steel (17-4PH)
