1200W High Power Piezo Driver for Fast Switching Applications

Physik Instrumente (Germany) - Built for demanding high performance piezo applications in industrial automation and R&D.

Nano precision motion industry leader PI (Physik Instrumente) LP has released the new model E-619, a high-power piezo amplifier designed to drive high-capacitance multilayer piezo actuators with rapid rise times or high frequencies. As a special form of electro-ceramics, piezo materials are the gold standard when it comes to speed, force, and precision in a small package.

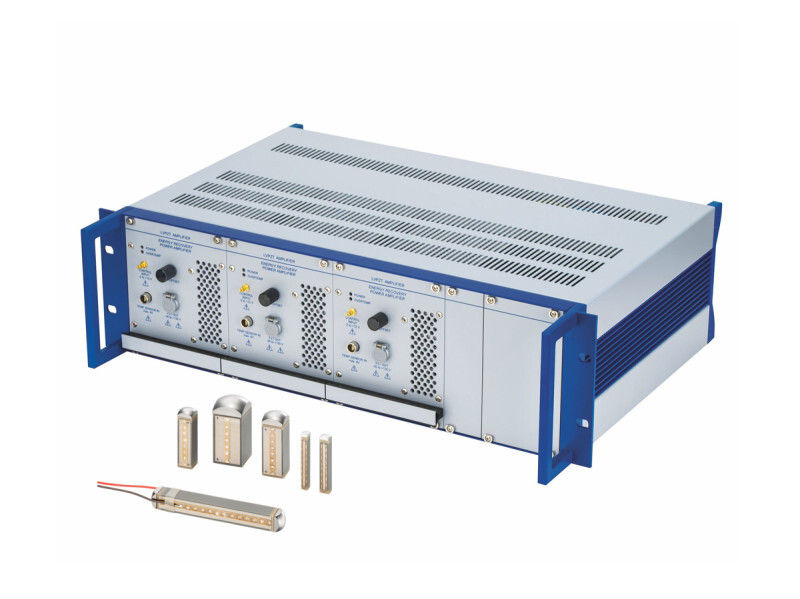

1200W Peak Power, 160Vpp Voltage Swing, 9.5” and 19” Racks for 1 to 3 Channels Piezo Driver Modules:

Providing sink/source currents up to 10 amps and an output voltage swing of 160V-pp (-30V to +130V), the new piezo driver delivers up to 1200 watts of peak power. Despite its high performance, this amplifier is very efficient due to its energy recovery circuitry. A temperature sensor input provides overheating protection of piezo actuators.

What are the Applications of High Power Piezo Amplifiers?

Piezo actuators allow response times in the microsecond range. This behavior is beneficial for operating fast switches, valves, micromachining and micro-dispensing equipment, as well as for active optics and vibration cancellation applications.

Options: 20kHz Bandwidth / 3kHz Bandwidth, Servo Controller, Computer Interface:

The E-619 high power piezo driver comes in two standard versions with a maximum bandwidth of 20kHz and 3kHz, respectively. Optional upgrade modules for closed-loop position servo control and digital control via a USB and TCP/IP interface are also available.
